NV49A Lightbar – Lightbars have become essential accessories for vehicles, offering improved visibility during nighttime driving, off-road adventures, and adverse weather conditions. The NV49A Lightbar is a popular choice known for its brightness, durability, and ease of use. If you’ve recently purchased an NV49A lightbar or are considering adding one to your vehicle, this comprehensive step-by-step tutorial will guide you through the entire installation process. Whether you’re a DIY enthusiast or a first-timer, you’ll find this guide easy to follow.
What Is the NV49A Lightbar?
Before diving into the installation, it’s helpful to understand what makes the NV49A Lightbar stand out:
- High Luminosity: Equipped with powerful LEDs that provide excellent illumination.
- Durability: Built to withstand harsh environments with waterproof and shockproof features.
- Versatility: Suitable for trucks, SUVs, off-road vehicles, and even boats.
- Energy Efficient: Consumes less power while delivering bright light.
- Easy to Mount: Designed with universal mounting brackets for quick installation.
Tools and Materials You Will Need
To ensure a smooth installation, gather the following tools and materials before you begin:
- NV49A Lightbar with mounting brackets
- Power drill with drill bits
- Screwdrivers (Phillips and flathead)
- Wrenches or socket set
- Electrical wire stripper/crimper
- Electrical tape
- Zip ties or cable organizers
- Wiring harness (usually included)
- Fuse and relay kit (recommended)
- Safety gloves and goggles

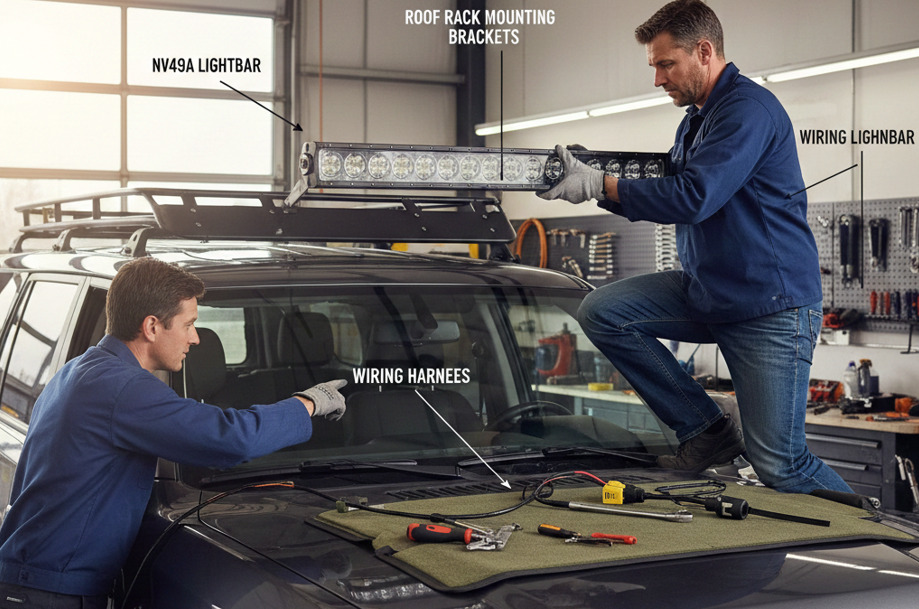

Step-by-Step NV49A Lightbar Installation Tutorial
Step 1: Choose the Mounting Location
Start by selecting the best location for your NV49A lightbar. Common mounting points include:
- Roof rack or crossbars
- Front grille or bumper
- Behind the windshield (inside) for some setups
Choose a position that provides maximum light coverage without obstructing your vehicle’s function or violating local laws.
Step 2: Prepare the Mounting Surface
Clean the mounting surface thoroughly to remove dirt and debris. This ensures the mounting brackets sit flush and securely.
Step 3: Attach the Mounting Brackets
Attach the mounting brackets to the lightbar using the screws provided. Ensure that the brackets are tight but avoid overtightening, which may damage the components.
Step 4: Mark Drilling Points
Hold the lightbar with brackets in the desired position and mark the drilling points on your vehicle. Use a marker to indicate where the holes will go.
Step 5: Drill Mounting Holes
Using the power drill and appropriate drill bits, carefully drill the holes on the marked points. Take caution to avoid damaging any components behind the mounting area.
Step 6: Secure the Lightbar
Place the lightbar with brackets over the drilled holes and secure it using bolts and nuts. Tighten firmly to ensure the lightbar is stable but avoid damaging the mounting brackets.
Step 7: Plan the Wiring Route
Plan the safest and cleanest path for your wiring from the lightbar to the vehicle battery and switch location. Avoid areas with moving parts or high heat.
Step 8: Connect the Wiring Harness
Connect the wiring harness to the lightbar according to the manufacturer’s instructions. Usually, this involves:
- Connecting the positive wire (red) to the power source
- Connecting the negative wire (black) to a good ground point
Use wire strippers and crimpers to make secure connections.
Step 9: Install the Relay and Fuse
For safety and to prevent electrical issues, install a relay and fuse in line with the power wire. This protects your vehicle’s electrical system from overload.
Step 10: Route and Secure Wires
Route the wires neatly along the planned path and secure them using zip ties or cable organizers. Avoid leaving wires loose or hanging, which can cause damage or shorts.
Step 11: Connect to the Battery and Switch
Connect the positive wire to the vehicle’s battery positive terminal, and the ground wire to the negative terminal or chassis ground. Connect the other end of the wiring harness to the switch, which you will install inside the vehicle in a convenient location.
Step 12: Test the Lightbar
Before finalizing everything, test the NV49A lightbar by turning on the switch. Ensure the lightbar illuminates correctly, and check for any flickering or loose connections.
Step 13: Final Adjustments
Adjust the angle of the lightbar for optimal lighting coverage and tighten all screws and bolts. Double-check all connections and mounting points.
Tips for a Successful Installation
- Consult the manual: Always refer to the NV49A lightbar’s user manual for specific instructions and safety precautions.
- Work safely: Use gloves and goggles during drilling and wiring.
- Avoid electrical shorts: Double-check wiring connections and insulation.
- Follow local laws: Some jurisdictions have regulations on lightbar use; ensure your installation complies.
- Seek professional help: If unsure, consider hiring a professional installer.
Maintenance and Care for Your NV49A Lightbar
To keep your lightbar functioning optimally:
- Regularly check and tighten mounting bolts.
- Clean the lightbar lens with a soft cloth and mild detergent.
- Inspect wiring for wear or damage.
- Protect it from prolonged exposure to harsh elements when possible.
Conclusion
Installing the NV49A Lightbar is a straightforward process that, with the right tools and careful planning, you can complete yourself. This powerful accessory will significantly enhance your vehicle’s lighting capabilities, whether for off-roading, work, or safety purposes. Follow this step-by-step tutorial to ensure a safe and secure installation, and enjoy improved visibility on your journeys.FAQs
1. How long does it take to install the NV49A lightbar?
Installation time varies depending on experience but generally takes between 1 to 3 hours for most users.
2. Can I install the NV49A lightbar without drilling?
Some mounting options may allow clamp mounts or adhesive mounts, but drilling provides the most secure installation.
3. Is the NV49A lightbar waterproof?
Yes, the NV49A lightbar is designed to be waterproof and weather-resistant, suitable for all-weather use.
4. What tools do I need for wiring the lightbar?
You will need wire strippers, crimpers, electrical tape, a wiring harness, and a fuse/relay kit for safe wiring.
5. Can I install the NV49A lightbar myself, or should I hire a professional?
If you have basic mechanical and electrical skills, you can install it yourself using this guide. Otherwise, hiring a professional is recommended.
